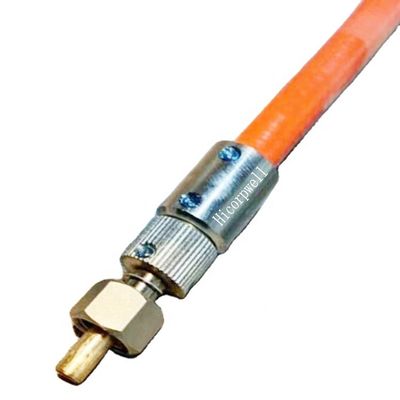

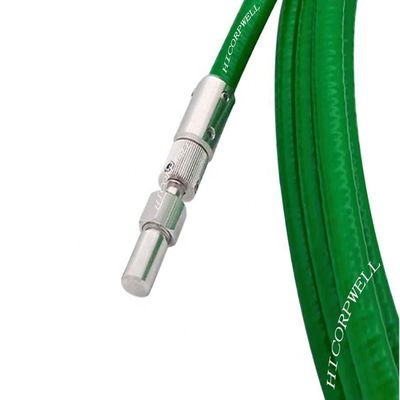

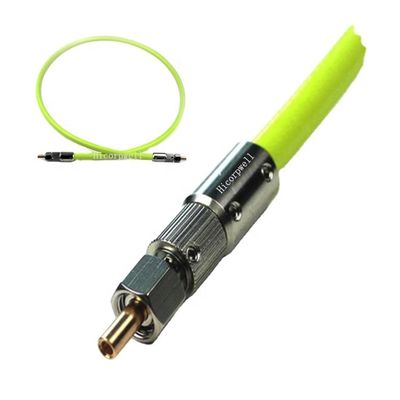

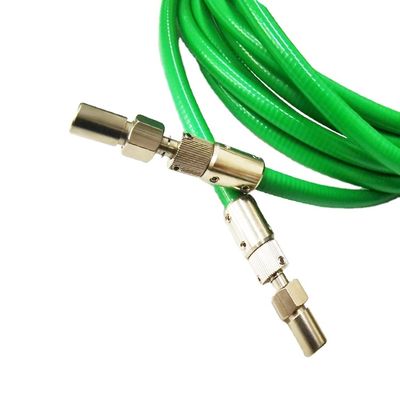

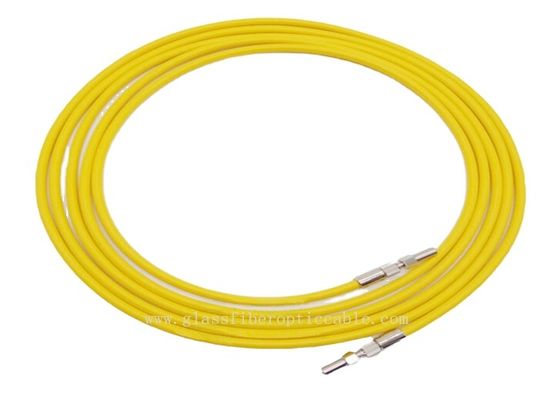

D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors

1
MOQ
$238.98-262.72
Precio
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Diámetros del núcleo de fibra: 200μm, 300μm, 400μm, 600μm, 800μm
Longitud del cable: 3m, 5m, 10m, 20m (personalizable)
Material central: Cuarzo puro (Bajo-OH)
Material de revestimiento: Material de cuarzo dopado
Apertura numérica: 0,22
Longitud de onda de funcionamiento: 400-2400 nanómetro
Diámetro del tubo de protección: 8 mm
Diámetro de revestimiento: 500μm, 750μm
Diámetro de recubrimiento: 780μm, 1100μm
Tipo de fibra: Fibra de índice escalonado
Eficiencia de transmisión: > 90%
Poder máximo del laser: 600W
Tipo de conector: D80 con zafiro
Disipación de calor: Virolas de aleación de cobre
Tamaño del paquete: 25X20X1cm
Resaltar:

200μm to 800μm Core Diameters D80 Fiber Optic Cable

,

Sapphire and Air Gap Protection High-Power Laser Fiber

,

Precisely Polished D80 Fiber Connectors Multimode Fiber Cable

Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Hicorpwell
Número de modelo: D80
Pago y Envío Términos
Descripción de producto
D80 High-Power Laser Fiber Cable
1500μm/1000μm D80 3M fiber cable core diameter with active cooling for high-power laser applications.
Product Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts with over 90% transmission efficiency. Designed for fiber-coupled laser systems in the 400-2400 nm wavelength range, it's ideal for high-power semiconductor, solid-state, and fiber lasers.
Key Features
  • Sapphire and Air Gap Protection for enhanced durability
  • Precisely Polished D80 Fiber Connectors
  • Step-index Fiber optimized for VIS-NIR applications
  • 0.22NA as standard (others available on request)
  • High quality stainless steel armored jacket
  • Advanced non-adhesive process for improved heat dissipation
Technical Specifications
Product Model (μm) ST200E ST300E ST400E ST600F
Core Diameter (μm) 200 300 400 600
Cladding Diameter (μm) 500 500 500 750
Coating Diameter 780 780 780 1100
Core Material Pure quartz (Low-OH)
Cladding Material Doped quartz material
Numerical Aperture (NA) 0.22
Operating Wavelength (nm) 400-2400
Length (m) 3, 5, 10 (default 5m, customizable)
Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Why Choose Our D80 Fiber Cables?
Our D80 fiber cables use step-index double-clad fibers and ferrules made from heat-conducting copper alloys for optimal laser transmission. Available in core diameters from 200μm to 800μm, they're engineered for superior heat dissipation in high-power applications.
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a factory verified by TUV.
Q: What is your delivery time?
A: Samples: 3-5 working days. Formal orders: 7-10 working days.
Q: Do you provide OEM service?
A: Yes, we can print your logo or label on products or packaging.
Q: How do you guarantee quality?
A: All products undergo 100% testing before shipment under our quality management system.
