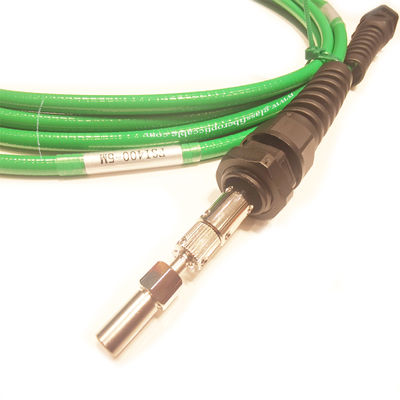

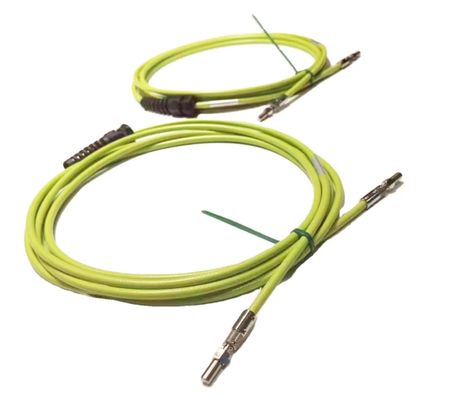

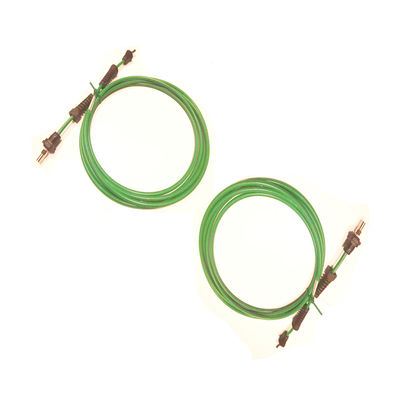

D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.

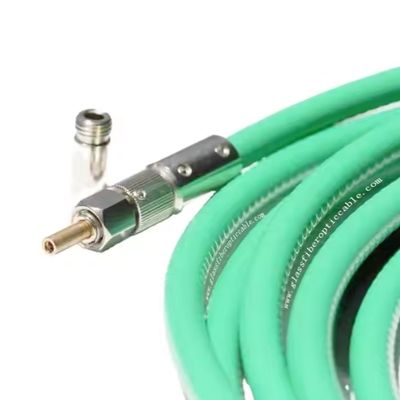

Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission. For enhanced protection, the D80 fiber connectors incorporate sapphire and air gap technology, enabling the cables to sustain laser power up to hundreds of watts with more than 90% transmission efficiency depending on fiber core diameters and laser specifications.
Ideal for fiber-coupled laser systems in wavelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), including high-power semiconductor lasers, solid-state lasers, and fiber lasers. Applications include high power laser transmission, laser welding, laser cutting, and other industrial laser processes.
| Parameter | Specification |
|---|---|
| Fiber Core Diameter (μm) | 200, 300, 400, 600, 800 |
| Fiber Core Material | High purity fused silica (Low-OH) |
| Fiber Type | Step-index fiber as standard; Graded-index fiber on request |
| Numerical Aperture (NA) | 0.22 as standard, others on request |
| Operating Wavelength (nm) | 400-2400 |
| Protection Tube Diameter (mm) | 8 |
| Cable Lengths (m) | 3, 5, 10, 20, etc. (customizable) |
SI200E, SI300E, SI400E, SI600F, SI800F, GI400E, GI600E
Output power can reach 400W, 600W, 800W, 1000W
Optical fiber standard length: customized by customer
