D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors

1
MOQ
$238.98-262.72
Precio
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Diámetros del núcleo de fibra: 200μm, 300μm, 400μm, 600μm, 800μm
Longitud del cable: 3m, 5m, 10m, personalizable
Diámetro del núcleo: 200μm, 300μm, 400μm, 600μm
Diámetro de revestimiento: 500μm, 750μm
Diámetro de recubrimiento: 780μm, 1100μm
Material central: Cuarzo puro (Bajo-OH)
Material de revestimiento: Material de cuarzo dopado
Apertura numérica: 0,22
Longitud de onda de funcionamiento: 400-2400 nanómetro
Diámetro del tubo de protección: 8 mm
Eficiencia de transmisión: > 90%
Potencia máxima: 600W
Tipo de fibra: Fibra de índice escalonado
Tipo de conector: Conector D80
Tamaño del paquete: 25X20X1cm
Resaltar:

200μm to 800μm D80 Fiber Cable

,

Sapphire and Air Gap Protection Fiber Optic Patch Cord

,

Precisely Polished D80 Fiber Connectors High Power Laser Cable
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Hicorpwell
Número de modelo: D80
Pago y Envío Términos
Descripción de producto
High Power Fiber Laser for Metal Cutting and Welding Standard Connectors Fiber Laser Active Cooling Laser Cable
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 0 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 1

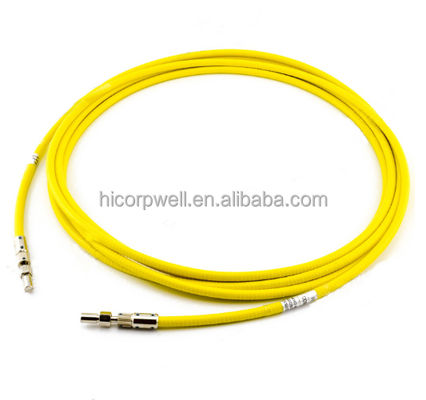

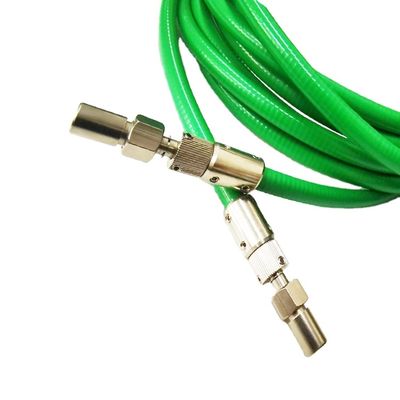

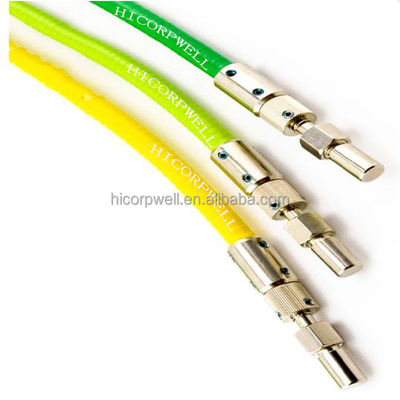

D80 High Power Laser Cable Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts in a single fiber with over 90% transmission efficiency. Designed for wavelength ranges from visible to near infrared (VIS-NIR, 400-2400 nm), it's ideal for high-power semiconductor lasers, solid-state lasers, and fiber lasers.
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 2 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 3
Key Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Technical Specifications
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default 5 meters, customizable)
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 4 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 5
Product Features

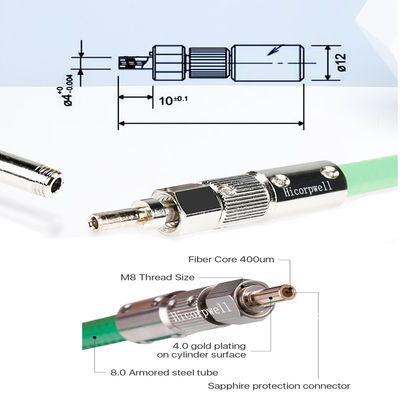

  • Sapphire D80 connector with air gap
  • High quality stainless steel jacket
  • Large core diameter (200-800µm available)
  • Precisely polished D80 fiber connectors
  • Step-index fiber optimized for VIS-NIR
  • 0.22NA as standard (others available on request)
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days; formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs are the customer's responsibility.
Q5: How do you guarantee quality?
A: All products are 100% tested before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Formal orders: 30% deposit, 70% balance before shipment.
